Enveda searches for potential medicines by analyzing complex chemical samples derived from nature (plant samples). Without going into too much detail, nature is, intuitively, an excellent source for potentially new drugs. Naturally occurring compounds have been optimized by evolution, over hundreds of millions of years, to have specific bioactivities (which can have efficacy against human disease targets). Despite natural compounds being only a tiny portion of theoretical compounds (10^60), they contribute more than 50% of FDA approved drugs. Enveda believes that a major opportunity exists in analyzing the thousands of (most unknown) metabolites that exist in natural samples.
At Level we attempt to harness complex networks and graphs. Networks exist all around us, and we believe framing machine learning problems as graph learning problems can provide unique value and performance gains (relational inductive bias). Within our own industry (venture capital), we have developed a suite of algorithms that construct networks (from raw data streams) and run algorithms on on top of them. As a team, we continuously think about network dynamics, complexity, non-equilibrium, and power laws.
Enveda recently published a post detailing GRAFF-MS, which utilizes graph neural networks as a core primitive for predicting mass spectra from molecular structure (this is building on their early work, called MS2Prop, which predicts chemical properties from mass spec data). This technique can be thought of as inverse of structural elucidation, where the idea is to augment libraries with spectra predicted from large databases of molecular graphs. There are few (10^4) small molecules with known experimental mass spectra, making augmentation incredibly valuable.

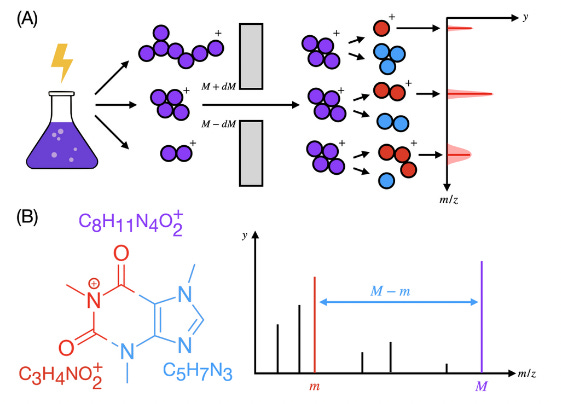

A key challenge in predicting spectra given molecular structure is the nature of the output space, which in the case of mass spec requires distinguishing m/z differences on the order of 10^-6. One of the existing methods for predicting spectra include bond-breaking. Bond-breaking enumerates the 2D structure of all probably product ions, using edge removals of the molecular graph. Among other things, this is a computationally slow process (~5 seconds to predict a single mass spectrum, which would take three months on a 64-core machine for the ~300k spectra in NIST-20!).
We will focus on the graph learning component, but below is a high-level summary of the GRAFF-MS approach:
Represent output space of spectrum prediction as a space of probability distributions over molecular formulas (since large corpus of mass spectra can be approximated using a fixed vocabulary constituting 2% of all observed formulas)
Constant-sized approximation of the output space using a fixed vocabulary of formulas using training data. Implement a loss function that takes into account data-specific ambiguities given the output space.
Graph neural network (GNN) architecture to predict spectra.
We will focus on the last item, the GNN, employs the following in its core architecture:
Use a graph of the 2D molecular structure and add four classes of features: node features, edge features, covariate features, and the top eigenvectors and eigenvalues of the graph Laplacian.
For atom and bond featurization, they use DGL-LifeSci (an open source library for GNNs applied to chemistry and biology). Covariate features include experimental parameters needed to determine spectrum from molecular graph.
SignNet is used to transform Laplacian features into node positional encodings (very interesting work, which provides neural network which is invariant to symmetries displayed in eigenvectors).
The embedded atom features and node positional are summed and passed along with embedded bond features into a message passing layers to update node representations. The message passing layer uses GINECov to embed graphs with node and edge features.
Dense molecular representation is generated by attention pooling over the nodes with added embedded covariate features.
We believe the above graph neural network approach is interesting in several ways:
There is a highly tuned coupling between the mass spectroscopy instrumentation and readout (and limitations) and the machine learning. Predicting mass spectrum from molecular structure would otherwise be intractable.
Molecular graphs are treated as first-order data elements, yet transformed into embedded features by incorporating atom and bond features, specific experimental parameters, and invariant transformation of the graph spectrum. As graph techniques and graph analytical engines become more advanced, and open source graph-structure scientific data becomes more available, we believe these methods will be very performant.
At the core, a message-passing algorithm updates the node representations, for which a representation of the molecule is generated as a final step. Message-passing approaches allow for customized iterative procedures on large scale graphs and matrices.
As these graph neural networks become more sophisticated and supporting libraries like DGL continue to mature for life sciences use cases, we will see incredible progress in computational drug discovery.
